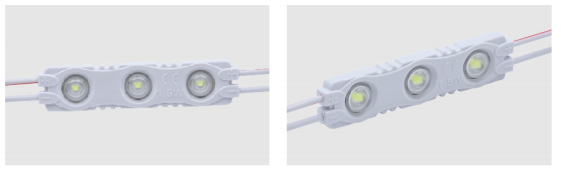

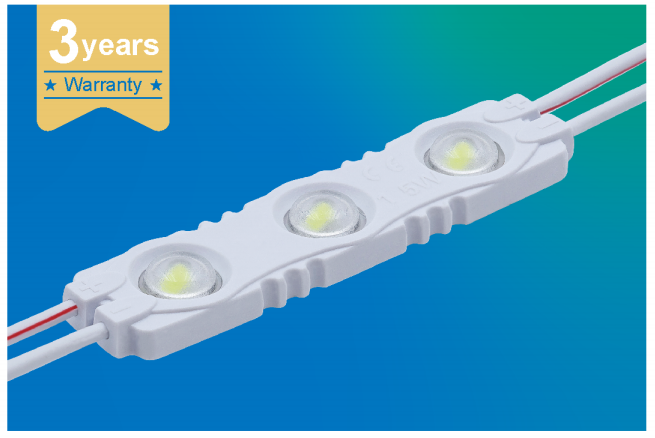

MA613E module
MA613E
Dimension: 61x14x5.7mm
Power: 1.2W±10%
Working voltage: 12V
Driving mode: Constant voltage
Center distance: 130mm
Cascading: 20pcs
Working temp: -30+60℃
Storage temp: -30-+70℃
IP grade: IP65
Power: 1.2W±10%
Working voltage: 12V
Driving mode: Constant voltage
Center distance: 130mm
Cascading: 20pcs
Working temp: -30+60℃
Storage temp: -30-+70℃
IP grade: IP65
Quantity:
 | Specification
|
Photoelectric characteristics
| Product model | Color | CCT | Efficiency | Lumen |
| MA613E | W | 7000K+5% | 100 Im/w | 120 lm |
| CW | 9000K+5% | 95 Im/w | 114 lm | |
| CW | 12000K+5% | 92 Im/w | 110 lm | |
| MA613ER | R | 620-650nm | ||
| MA613EG | G | 520-525nm | ||
| MA613EB | B | 450-460nm |

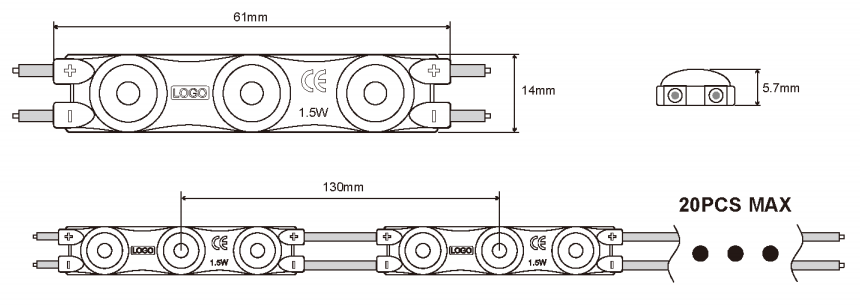

Dimensions (mm)
 |
Features
| Light distribution  |
 |
Max power supply load
| Power(W) | 60 | 100 | 150 | 200 | 300 |
| Quantity(PCS) | 46 | 76 | 116 | 150 | 230 |
★Note:Recommended Qty=Driver Power*0.8/Module Power
Package
| Carton size | Qty/bag | Qty/carton | Gross weight | Net weight |
| 460x 270x170mm | 200pcs | 2000pcs | 10kg | 9kg |
Installation (mm)
 | |||||||||||||||||||||||||
★ Note:For multiple rows installation,DZ(margin space)=1/2 DY |
