AMLS-72-24
AMLS-72-24
Model: AMLS-72-24
Power: 72W, (18W/ 24W/ 36W/ 48W/ 60W Optional)
Output Voltage: 24V, (12V Optional)
Input Voltage: 100V-240V
Efficiency: ≥85%
Lifespan: 100000 Hours
IP Rating: IP20
Rated Current: 3A
Operating Temperature: -30~+60°C
Dimensions: 311x 18x 18mm
Warranty: 3 years
Power: 72W, (18W/ 24W/ 36W/ 48W/ 60W Optional)
Output Voltage: 24V, (12V Optional)
Input Voltage: 100V-240V
Efficiency: ≥85%
Lifespan: 100000 Hours
IP Rating: IP20
Rated Current: 3A
Operating Temperature: -30~+60°C
Dimensions: 311x 18x 18mm
Warranty: 3 years
Quantity:
Specification | Dimensions(mm) | ||||||||||||||||||||
|  |
Product Features
- This series offers a full range of power options, Slim profile allows and lightweight design, is easy to install discreetly, and saves on shipping space and inventory.
- Thanks to its exceptional and consistent performance, it is ideal for edge lighting in furniture and cabinets, as well as in advertising signage and other applications.
- Built-in multiple protections: overvoltage, overcurrent, short circuit, overload, and leakage protection.
- Low no-load loss, energy-saving standby mode, and eco-friendly.
- Silent operation, no noise.
Product Structure
Key Features: This series offers a comprehensive range of power supply options. It features a compact, lightweight design that can be easily concealed during installation, thereby saving shipping space and reducing inventory. It is ideal for edge lighting in furniture and cabinets, as well as for illuminated advertising signs. | |
 | |
Caution:Do not disassemble this unit. Installation and use must be performed by a licensed electrician, and the power must be turned off before any work is performed. | |
Applications

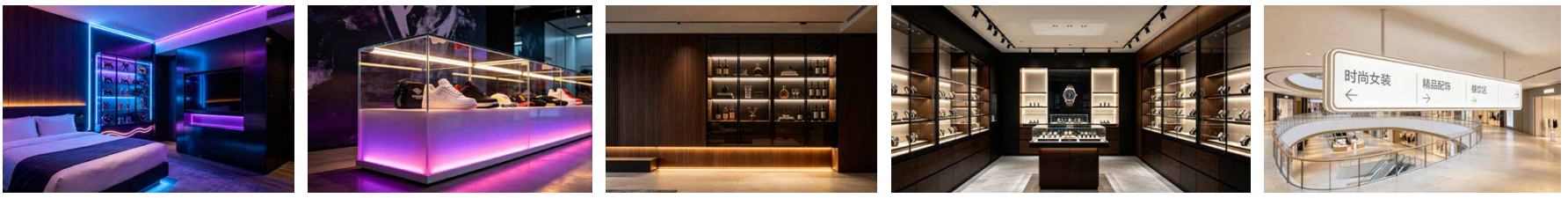

1. Lighting for indoor retail storefront displays, ambient lighting for entertainment venues, home décor, and linear lighting fixtures.
2. Outdoor signage, illuminated lettering for light boxes, and lighting projects for parks, public spaces, and buildings.
Interior Decorative Lighting Cabinet Lighting Closet Lighting Bookshelf Lighting Bedroom Lighting
Home Decor Lighting Product Display Case Lighting Wine Cabinet Lighting Product Showcase Lighting Signage Lighting
Product installation instructions and precautions:
1. Before powering on and testing after installation, please check and verify that the inputs and outputs, AC and DC, positive and negative terminals,
voltage and current values are correct. Prevent reverse connection or incorrect connection to avoid damaging the power supply and user equipment.
2. Before powering on, please use a multimeter to check whether the live wire, neutral wire, and ground wire are short-circuited, and whether the output
terminal is short-circuited; it is best to start under no-load when powering on.
3. Do not exceed the power supply's rated values during use, as this may affect product reliability. If you need to change the power supply's output
parameters, please consult our technical department before using the power supply to ensure optimal performance and reliability.
4. To ensure safety and reduce interference, please ensure that the grounding terminal is reliably grounded.
