AMRPH-600-24

AMRPH-600-24
Certification: CE,RoHS
Power: 600W, (60W/ 120W/ 200W/ 300W/ 350W/ 400W Optional)
Output Voltage: 24V, (12V/ 24V/ 30V/ 36V Optional)
Input Voltage: 180V-240V
Efficiency: 88%
Lifespan: 100000 Hours
IP Rating: IP54
Rated Current: 25A
Frequency Range: 50-60Hz
Power Factor: ≥0.6
Operating Temperature: -30~+60℃
Operating Humidity: 20-90%RH no condensation
Storage Temperature: -30~+85℃
Storage Humidity: 10-95%RH
Dimensions(mm): 214*116*50
Quantity:
Contact Now



Specification
Model
AMRPH-600-12
Power
600W, (60W/ 120W/ 200W/ 300W/ 350W/ 400W Optional)
Output Voltage12V, (24V/ 30V/ 36V Optional)
Input Voltage180V-240V
Efficiency88%
Lifespan100000 Hours
IP RatingIP54
Rated Current25A
Operating Temperature-30~+60°C
Dimensions214x 116x 50mm
Warranty
3 years



Product Features
  • The AMRPH-600-12 series is a 400W constant-voltage driver with an input voltage range of 180–240VAC. The output voltage is 12V.
  • This series is specifically designed for outdoor weatherproof lighting, decorative lighting, and advertising signage lighting applications.
  • High efficiency and excellent heat dissipation greatly improve product reliability and extend product lifespan.
  • Multi-protection (OVP/ OCP/ OLP/ SCP/ OTP). Auto shut-off on short circuit for enhanced safety.
  • This series of switching power supplies has earned an excellent reputation for its outstanding
  • water resistance, making it an ideal choice for advertising and signage lighting projects.
Applications

1. Outdoor signage, illuminated lettering for light boxes, and lighting projects for parks, public spaces, and buildings.
2. Lighting for indoor retail storefront displays, ambient lighting for entertainment venues, home décor, and linear lighting fixtures.

               Advertising Signs              Illuminated Letters and Light Boxes    Bridge & Building Lighting Projects    Outdoor LED Screen Advertising    Urban Directional Signs
                Amusement Park           Large Advertising Light Boxes    Outdoor Surveillance Projects       Indoor Supermarket Advertising           Interior Ambient Lighting

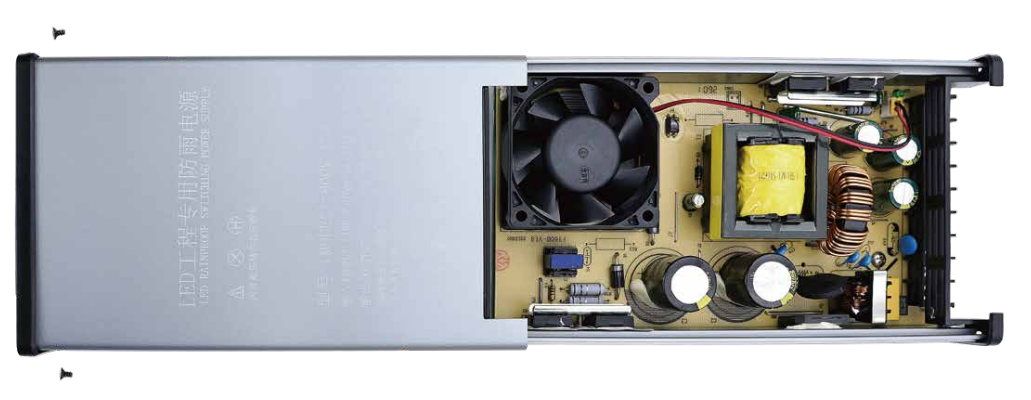

Product Structure

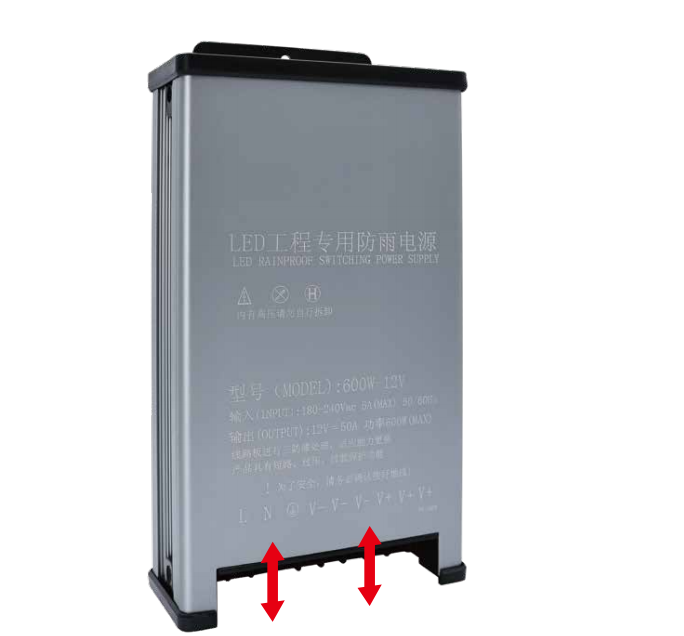

Key Features: The sliding cover opens and closes
easily, allowing for quick wiring; please install and
secure it vertically inside the electrical panel.
Reliable Quality: We use genuine, high-quality materials, and all components
undergo rigorous inspection and testing by our Quality Department to ensure
we take full responsibility for every product delivered to our customers.


Caution:Non-professionals should not attempt this. If disassembly or repair is
necessary, it must be performed only by a licensed electrician, and the power
must be turned off before proceeding.

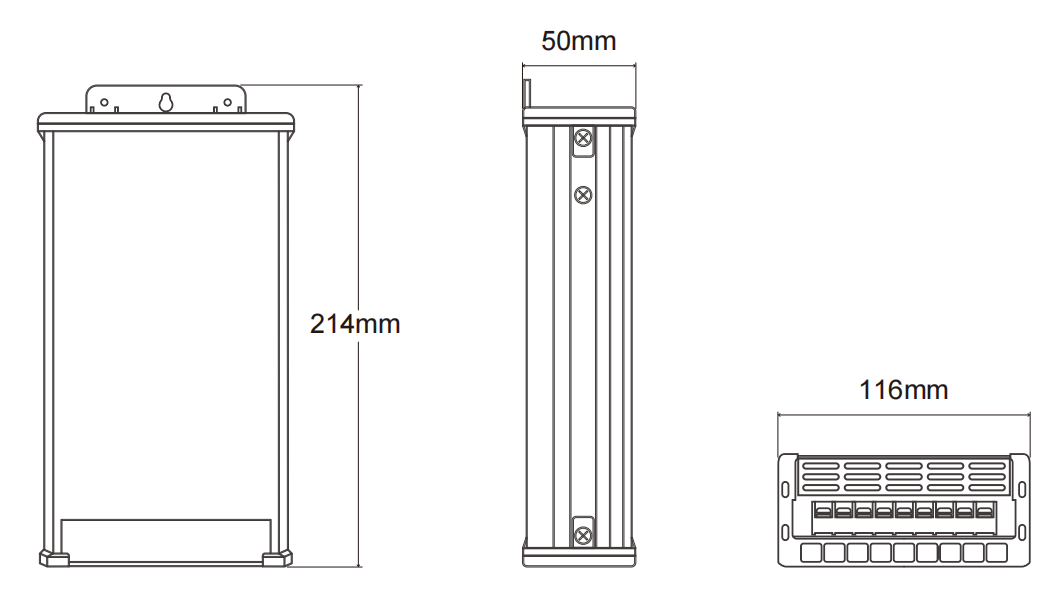

Dimensions(mm)

Product installation instructions and precautions:
1. Before powering on and testing after installation, please check and verify that the inputs and outputs, AC and DC, positive and negative terminals,
voltage and current values are correct. Prevent reverse connection or incorrect connection to avoid damaging the power supply and user equipment.
2. Before powering on, please use a multimeter to check whether the live wire, neutral wire, and ground wire are short-circuited, and whether the output
terminal is short-circuited; it is best to start under no-load when powering on.
3. Do not exceed the power supply's rated values during use, as this may affect product reliability. If you need to change the power supply's output
parameters, please consult our technical department before using the power supply to ensure optimal performance and reliability.
4. To ensure safety and reduce interference, please ensure that the grounding terminal is reliably grounded.
