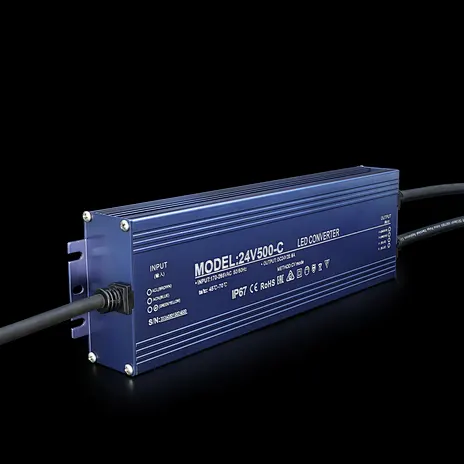

AMWPMQ-500-24

Model: AMWPMQ-500-24
Power: 500W, (36W/ 45W/ 60W/ 80W/ 100W/ 150W/ 200W/ 300W/ 400W Optional)
Output Voltage: 24V, (12V Optional)
Input Voltage: 170-265V, (Under 200, 100-265V)
Efficiency: 90%
Lifespan: 100000 Hours
IP Rating: IP67
Rated Current: 20.8A
Operating Temperature: -30~+60°C
Dimensions: 270x 78x 35mm
Warranty: 3 years

Quantity:

Contact Now

Specification

Model	AMWPMQ-500-24
Power	500W, (36W/ 45W/ 60W/ 80W/ 100W/ 150W/ 200W/ 300W/ 400W Optional)
Output Voltage	24V, (12V Optional)
Input Voltage	170-265V, (Under 200, 100-265V)
Efficiency	90%

Lifespan	100000 Hours
IP Rating	IP67
Rated Current	20.8A
Operating Temperature	-30~+60°C
Dimensions	270x 78x 35mm
Warranty	3 years

Dimensions(mm)

Product Features

High IP protection rating; the sealed aluminum housing is designed to be rain- and moisture-resistant.
This series is specifically designed for outdoor weatherproof lighting, decorative lighting, and advertising signage lighting applications.
High efficiency and excellent heat dissipation greatly improve product reliability and extend product lifespan.
Multi-protection (OVP/ OCP/ OLP/ SCP/ OTP). Auto shut-off on short circuit for enhanced safety.
It offers exceptional water resistance across the entire power range and is suitable for all outdoor waterproof LED strip lights, light modules, light boxes, neon signs, and other urban lighting projects.

Product Structure

Key Features: Encapsulated, reinforced, and waterproof power supply,

ideal for outdoor lighting projects. Simply connect the input and output

wires and turn on the power for normal operation.

Caution:Do not disassemble this unit. Installation and use must be

performed by a licensed electrician, and the power must be turned off

before any work is performed.

Applications

1. Outdoor signage, illuminated lettering for light boxes, and lighting projects for parks, public spaces, and buildings.

2. Lighting for indoor retail storefront displays, ambient lighting for entertainment venues, home décor, and linear lighting fixtures.


Bridge & Building Lighting Projects	Amusement Park	Outdoor LED Screen Advertising	Advertising Signs	Illuminated Letters and Light Boxes


Urban Directional Signs	Large Advertising Light Boxes	Outdoor Surveillance Projects	Indoor Supermarket Advertising	Interior Ambient Lighting

Product installation instructions and precautions:

1. Before powering on and testing after installation, please check and verify that the inputs and outputs, AC and DC, positive and negative terminals,

voltage and current values are correct. Prevent reverse connection or incorrect connection to avoid damaging the power supply and user equipment.

2. Before powering on, please use a multimeter to check whether the live wire, neutral wire, and ground wire are short-circuited, and whether the output

terminal is short-circuited; it is best to start under no-load when powering on.

3. Do not exceed the power supply's rated values during use, as this may affect product reliability. If you need to change the power supply's output

parameters, please consult our technical department before using the power supply to ensure optimal performance and reliability.

4. To ensure safety and reduce interference, please ensure that the grounding terminal is reliably grounded.
