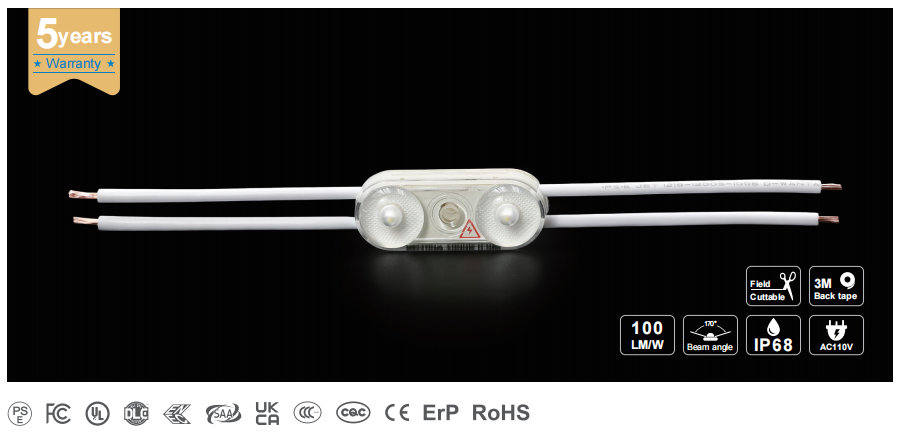

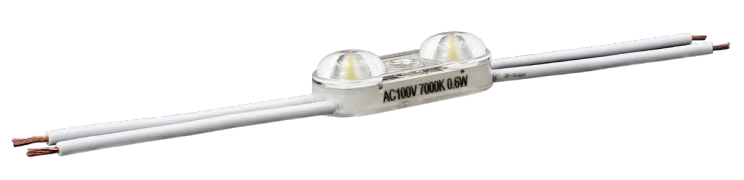

MA412H Series

MA412H

Dimension: 41.6x16.6x11.6mm
Power: 0.6W
Working voltage: 100V
Driving mode: AC Directly
Center distance: 200mm
Cascading: 50/100pcs
Working temp: -30~+60℃
Storage temp: -30~+70℃
Beam angle: 170°

Quantity:

Contact Now

Specification

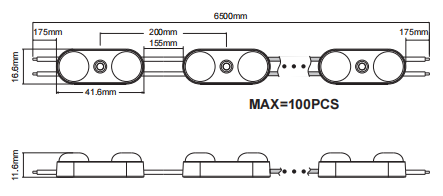

Dimensions(mm)

Dimension	41.6x 16.6x 11.6mm
Power	0.6W
Working voltage	100V
Driving mode	AC Directly
Center distance	200mm
Cascading	50/ 100pcs
Working temp	-30~+60°C
Storage temp	-30~+70°C
Beam angle	170°

Optical Parameter
Item NO	Color	CCT	Lumen/ pc	Power/ module	Light Efficiency	Module/ M
MA412H	CW	7000K	69 lm	0.6W	115 lm/w	4pcs/ M
	NW	4000K	66 lm		110 lm/w
	WW	3000K	63 lm		105 lm/w

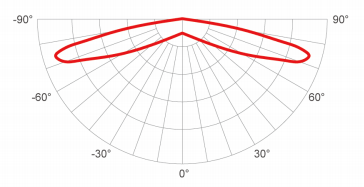

Features	Light distribution
AC100V directly input, excellent waterproof with IP67, Bezel-free lens 170° Specially designed for medium-sized signs with depth more than 6cm/ 2.4inches High efficiency LED chips to ensure the max brightness Premium components to ensure the stability Great heat dissipation design to ensure long life expectancy 5 years warranty

Layout Guide (Metric)
Channel Depth (in / mm)	Single Row		Multiple Rows
Channel Depth (in / mm)	Min.Stroke	Module Spacing	Row Spacing	Module Spacing
1.0 / 25	0.33 / 8.5	1.18 / 30	0.79 / 20	1.18 / 30
1.6 / 40	0.33 / 8.5	2.00 / 50	1.64 / 40	2.00 / 50
2.0 / 50	0.33 / 8.5	2.00 / 50	2.50 / 63	2.00 / 50
