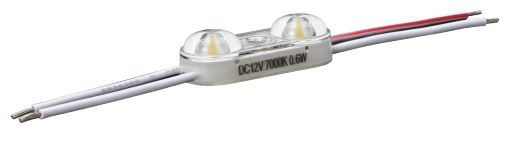

MA412L Series

MA412L

Dimension: 41.6x 16.6x11.6mm
Power: 0.6W
Working voltage: 12V/24V
Driving mode: Constant current
Center distance: 200mm
Cascading: 25/50pcs
Working temp: -30~+60℃
Storage temp: -30~+70℃
Beam angle: 170°

Quantity:

Contact Now

Specification

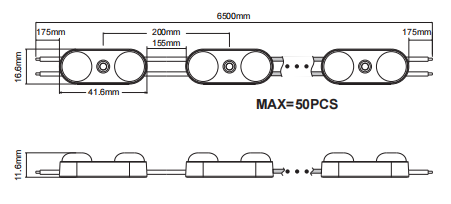

Dimensions(mm)

Dimension	41.6x 16.6x 11.6mm
Power	0.6W
Working voltage	12V/24V
Driving mode	Constant current
Center distance	200mm
Cascading	25/50pcs
Working temp	-30~+60°C
Storage temp	-30~+70°C
Beam angle	170°

Optical Parameter
Item NO	Color	CCT	Lumen/ pc	Power/ module	Light Efficiency	Module/ M
MA412L	CW	7000K	102 lm	0.6W	170 lm/w	4pcs/ M
	NW	4000K	97 lm		163 lm/w
	WW	3000K	93 lm		155 lm/w

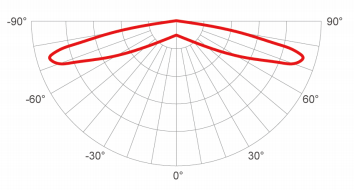

Features	Light distribution

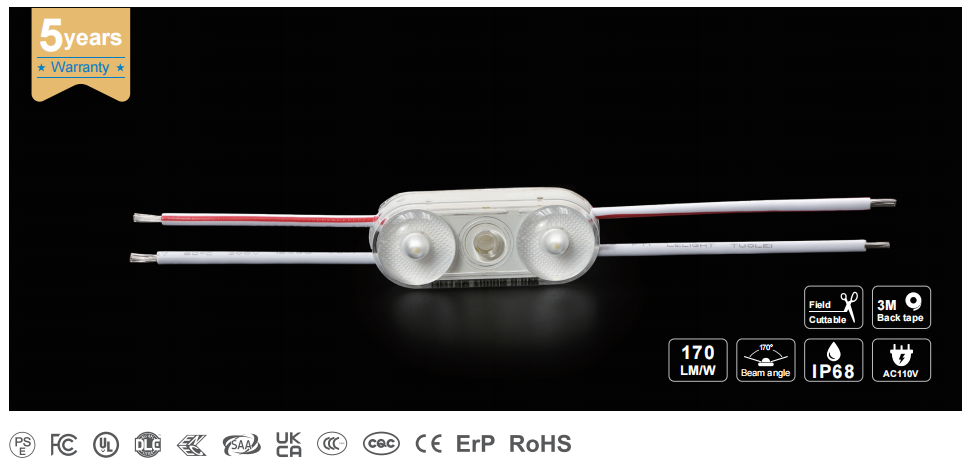

DC12V, Excellent waterproof with IP68, Bezel-free lens 170° Compact miniature size suitable for small channel letters with 2-5 inches High efficiency LED chips to ensure the max brightness Premium components to ensure the stability Great heat dissipation design to ensure long life expectancy 5 years warranty

Layout Guide (Metric)
Channel Depth (in / mm)	Single Row		Multiple Rows
Channel Depth (in / mm)	Min.Stroke	Module Spacing	Row Spacing	Module Spacing
2.0 / 50	4.0 / 100	4.0 / 100	8.0 / 200	4.0 / 100
3.0 / 75	6.0 / 150	6.0 / 150	12.0 / 300	6.0 / 150
4.0 / 100	8.0 / 200	8.0 / 200	16.0 / 400	8.0 / 200
5.0 / 120	8.0 / 200	8.0 / 200	20.0 / 500	8.0 / 200
