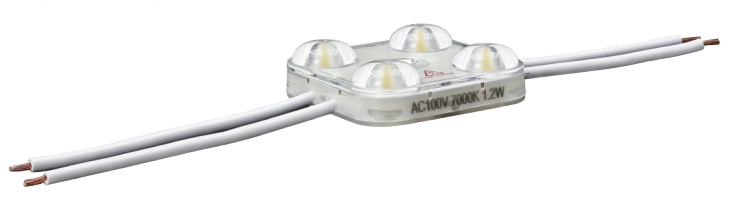

MA414H Series

MA414H

Dimension: 41.6x41.6x11.6mm
Power: 1.2W
Working voltage: 100V
Driving mode: AC Directly
Center distance: 200mm
Cascading: 50/100pcs
Working temp: -30~+60℃
Storage temp: -30~+70℃
Beam angle: 170°

Quantity:

Contact Now

Specification

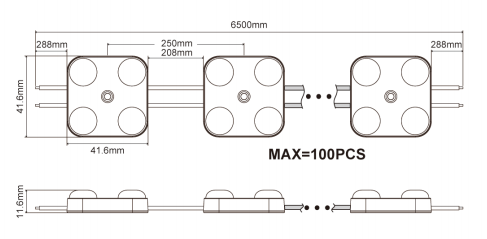

Dimensions(mm)

Dimension	41.6x41.6x11.6mm
Power	1.2W
Working voltage	100V
Driving mode	AC Directly
Center distance	200mm
Cascading	50/ 100pcs
Working temp	-30~+60°C
Storage temp	-30~+70°C
Beam angle	170°

Optical Parameter
Item NO	Color	CCT	Lumen/ pc	Power/ module	Light Efficiency	Module/ M
MA414H	CW	7000K	120 lm	1.2W	100 lm/w	4pcs/ M
	NW	4000K	116 lm		96 lm/w
	WW	3000K	112 lm		93 lm/w

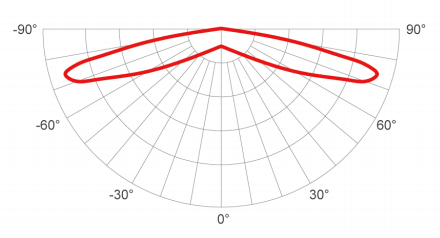

Features	Light distribution

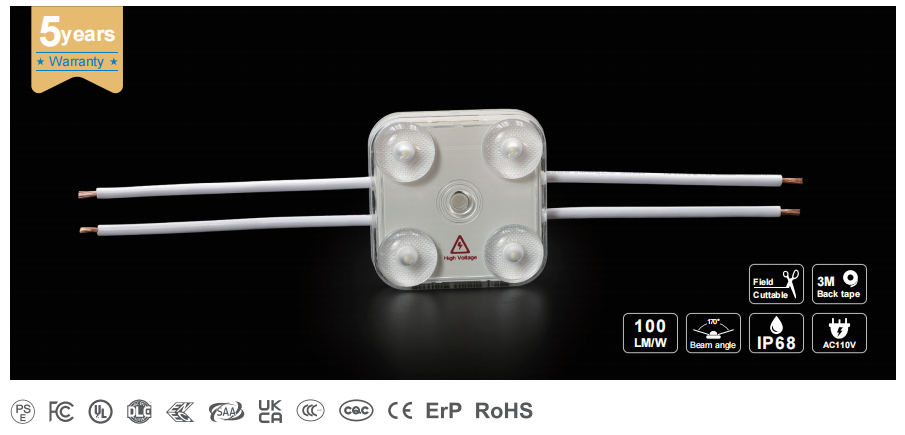

AC100V directly input, excellent waterproof with IP67, Bezel-free lens 170° Specially designed for non-small signs and lighting box with depth more than 6cm/ 2.4inches High efficiency LED chips to ensure the max brightness Premium components to ensure the stability Great heat dissipation design to ensure long life expectancy 5 years warranty

Layout Guide (Metric)
Channel Depth (in / mm)	Single Row		Multiple Rows
Channel Depth (in / mm)	Min.Stroke	Module Spacing	Row Spacing	Module Spacing
3 / 75	6.0 / 150	6.0 / 150	12 / 300	6.0 / 150
4 / 100	8.0 / 200	8.0 / 200	16 / 400	8.0 / 200
5 / 125	8.0 / 200	8.0 / 200	20 / 500	8.0 / 200
6 / 150	8.0 / 200	8.0 / 200	20 / 500	8.0 / 200
