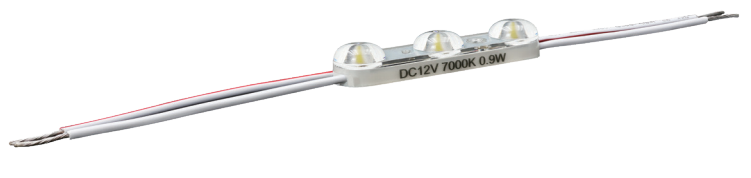

MA643L Series

MA643L
Dimension: 66x 16x 10.8mm
Power: 0.9W
Working voltage: 12V/24V
Driving mode: Constant current
Center distance: 200mm
Cascading: 25pcs
Working temp: -30~+60℃
Storage temp: -30~+70℃
Beam angle: 170°
Quantity:
Contact Now

Specification

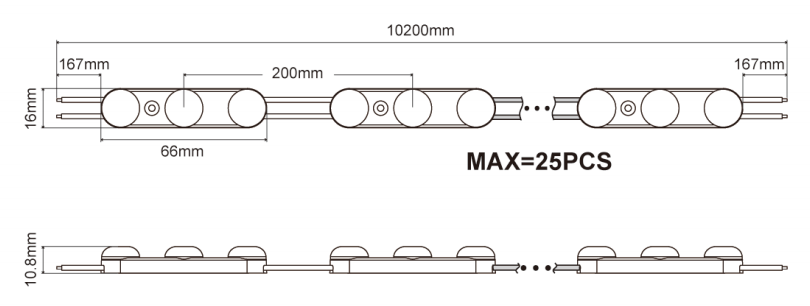

Dimensions(mm)
Dimension
66x 16x 10.8mm
Power
0.9W
Working voltage
12V/24V
Driving mode
Constant current
Center distance
200mm
Cascading
25pcs
Working temp
-30~+60°C
Storage temp
-30~+70°C
Beam angle
170°


Optical Parameter
Item NOColorCCTLumen/ pcPower/ moduleLight EfficiencyModule/ M
MA643LCW7000K153 lm0.9W169 lm/w4pcs/ M
NW4000K150 lm166 lm/w
WW3000K147 lm163 lm/w

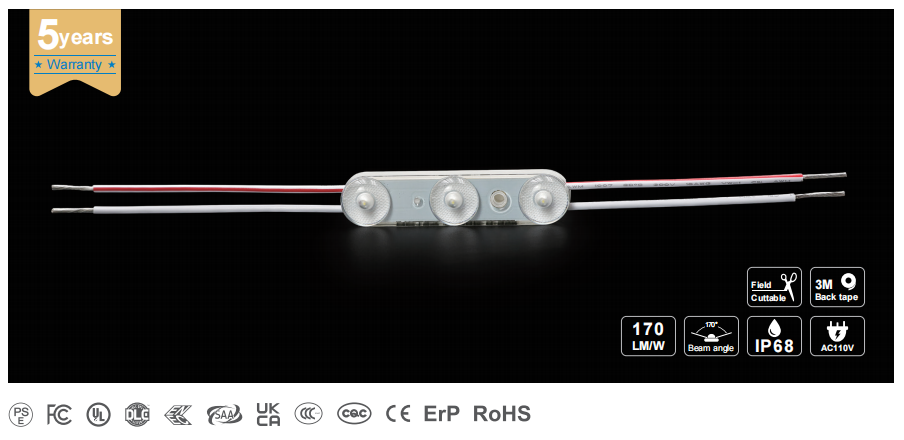

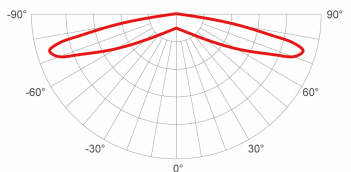

FeaturesLight distribution

  • DC12V, Excellent waterproof with IP68, Bezel-free lens 170°

  • Compact miniature size suitable for small channel letters with 2-5 inches

  • High efficiency LED chips to ensure the max brightness

  • Premium components to ensure the stability

  • Great heat dissipation design to ensure long life expectancy

  • 5 years warranty


Layout Guide (Metric)
Channel Depth
(in / mm)
Single Row
Multiple Rows
Min.StrokeModule SpacingRow SpacingModule Spacing
2.0 / 50 3.0 / 753.6 / 905.0 / 125
3.6 / 90
3.0 / 754.5 / 1125.5 / 1377.5 / 187
5.5 / 137
4.0 / 1006.0 / 1508.0 / 20010.0 / 2508.0 / 200
5.0 / 1258.0 / 2008.0 / 200
12.5 / 312
8.0 / 200
