MAD4206HB

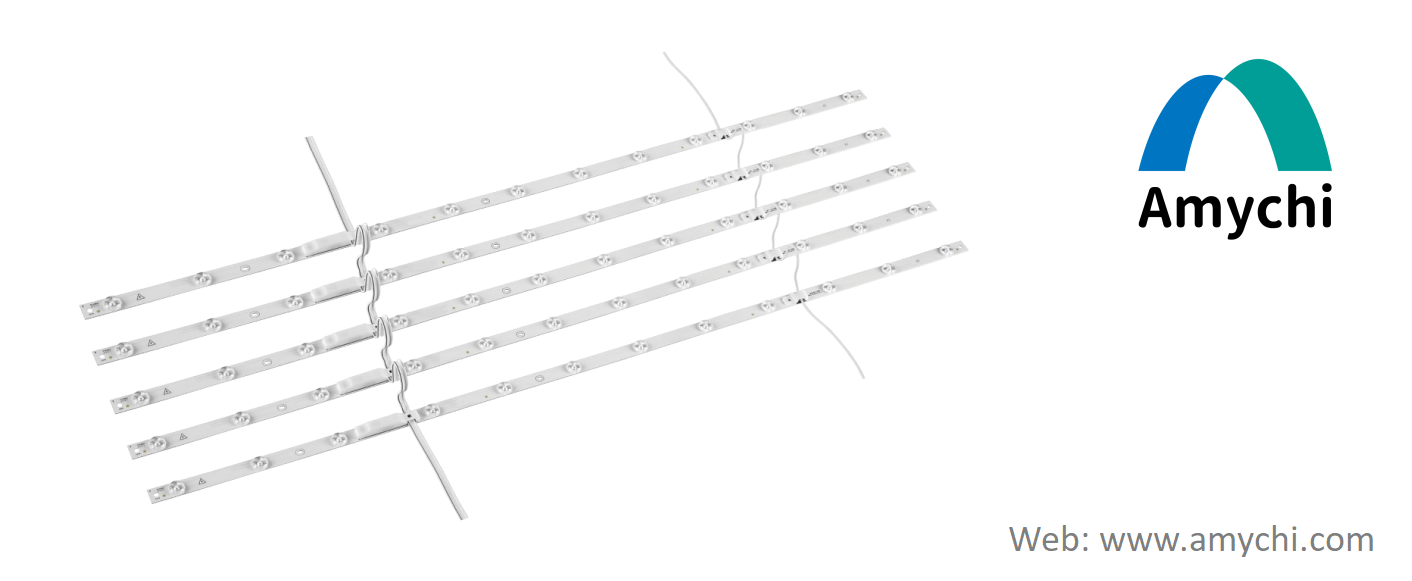

Product Image

Model No.

MAD4206HB

Dimension

420*15mm

Input Voltage

AC 175-265V

LED Qty

6

Power

6W

CCT

12000K

Luminous Flux

780LM

Wire Spacing

150mm

Features

1. Solve the difficulty of built-in power supply for ultra-thin light boxes. Each bar is equipped with an independent driver, supporting direct connection to AC 220 V mains without an external power supply.

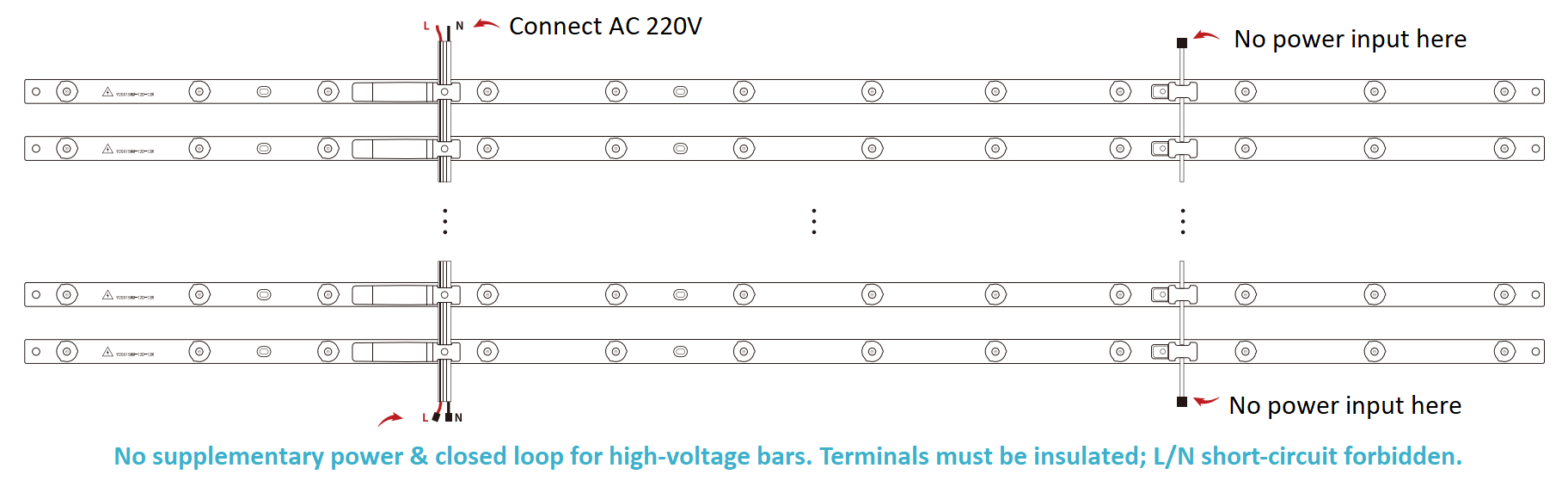

2. Supports series connection of up to 40 bars via single-side power input, greatly simplifying wiring procedures and doubling installation efficiency.

3. Adopts ultra-wide 175° lens; the wire spacing between light bars is 150 mm, applicable to light boxes with a thickness of only 4 cm.

Applications

Advertising light boxes, advertising signs, etc.

Mounting Method
