MAD94512HB

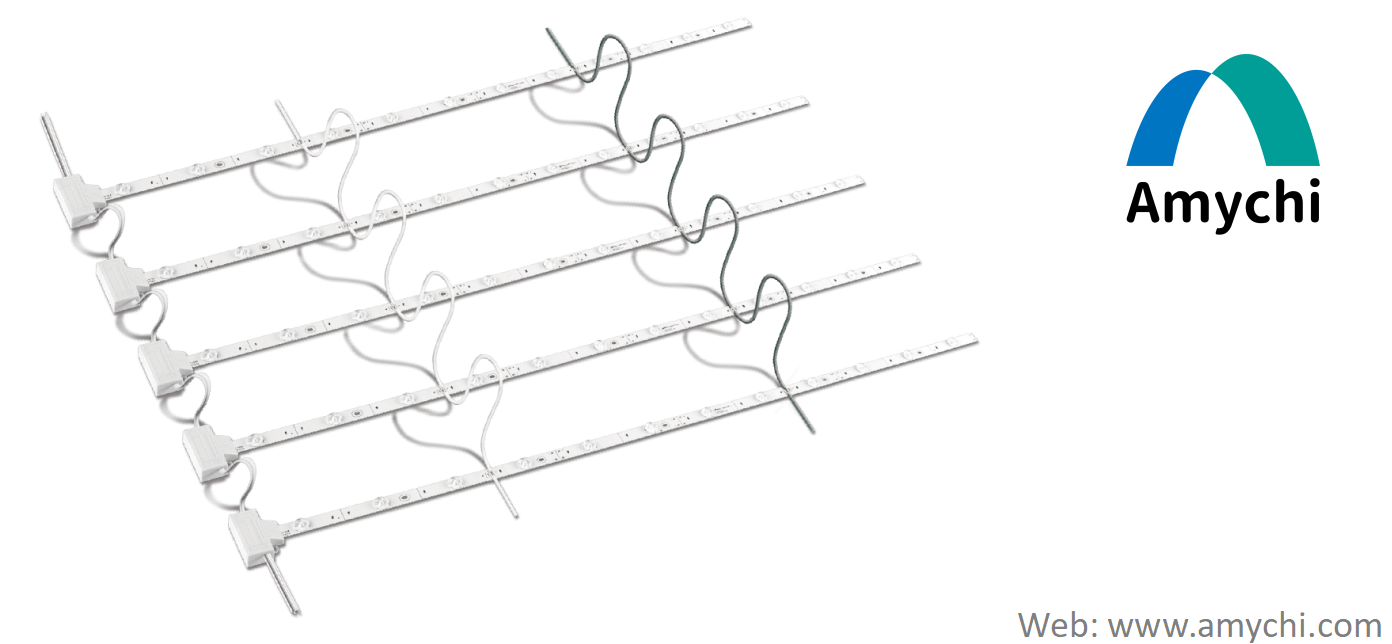

Product Image

Model No.

MAD94512HB

Dimension

945*15.5*1mm

Input Voltage

AC 175-265V

LED Qty

12

Power

12W

CCT

12000K

Luminous Flux

1560LM

Wire Spacing

170mm

Features

1. Each bar comes with an independent driver. Up to 30 bars can be connected in series with single-side power supply. Directly compatible with AC220V mains power without an external power supply, which simplifies wiring and improves installation efficiency.
2. Segment-cuttable design to meet customized dimension requirements of diverse applications.
3. Dual-wire parallel power supply structure enables mutual power compensation between bars for stable and consistent lighting output.
4. The rest bars remain lit normally even under abnormal conditions including driver failure, PCB fracture, cold solder joint/desoldering of wires, or single LED damage, delivering maintenance-free performance with superior reliability.
5. New isolated power solution with separated high/low voltage zones; split design of driver power supply and LED PCB. Output voltage is lower than 36V SELV (Safety Extra-Low Voltage) for safe operation and stable performance.
6. Built-in 10KV lightning surge protection, flicker-free light output to guarantee electrical safety and visual comfort.

Applications

Advertising light boxes, advertising signs, etc.

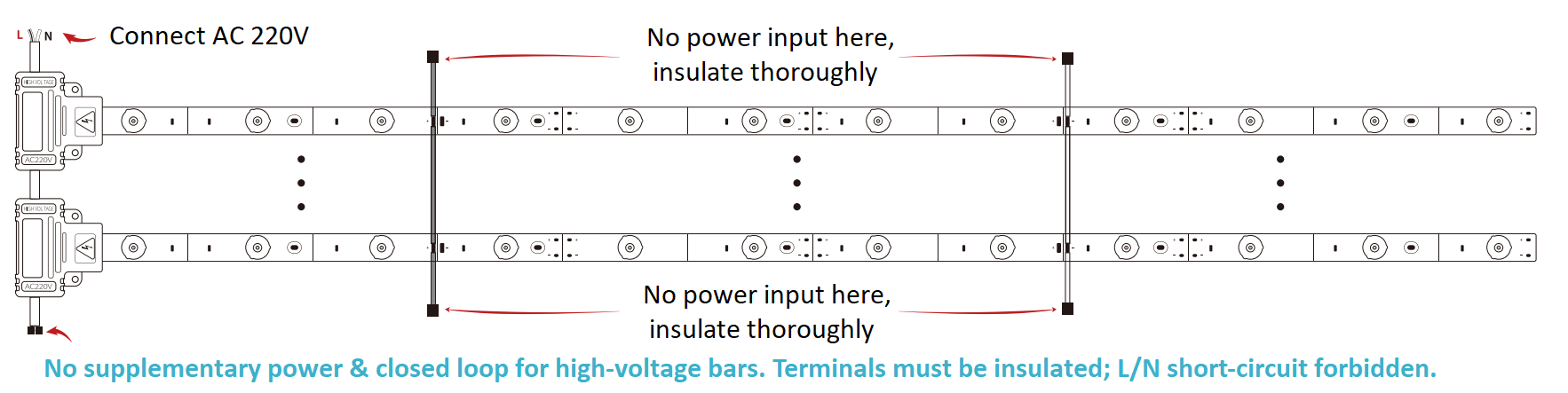

Mounting Method
