MAD94512HBRP

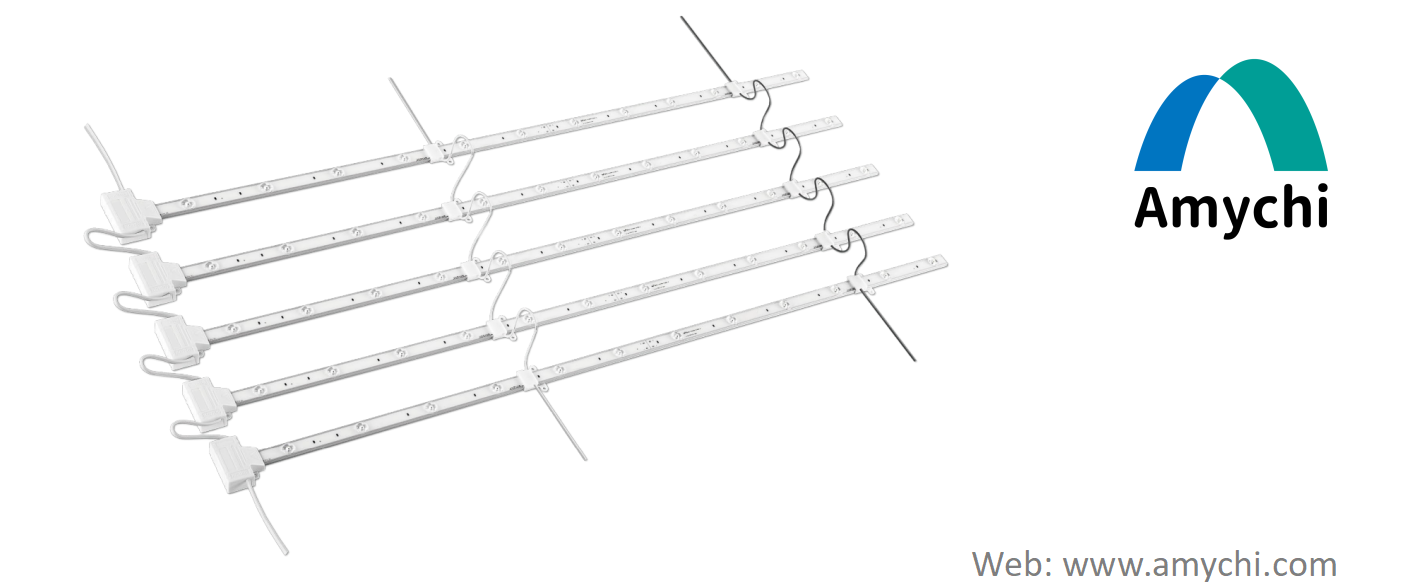

Product Image

Model No.

MAD94512HBRP

Dimension

945*15.5mm

Input Voltage

AC 175-265V

LED Qty

12

Power

12W

CCT

12000K

Luminous Flux

1560LM

Wire Spacing

170mm

Features

1. Each light bar is equipped with an independent driver. Up to 30 bars can be connected in series with single-side power supply. Directly compatible with AC 220 V mains power without an external power supply, which simplifies complex wiring and boosts installation efficiency.

2. Segment-cuttable design to satisfy customized dimension demands of diverse application scenarios.

3. Adopts dual-wire parallel power architecture to realize mutual power compensation between bars, ensuring stable and consistent lighting output.

4. The rest bars can keep lighting normally even under abnormal conditions including driver failure, PCB fracture, wire cold solder joint / desoldering or single LED damage, achieving truly maintenance-free operation with ultra-high reliability.

5. New isolated power solution with separated high and low voltage zones, featuring an independent split driver power supply (driver separated from LED PCB). The output voltage is below 36 V SELV (Safety Extra-Low Voltage) for safe operation and stable, reliable performance.

6. Built-in robust 10 kV lightning surge protection, flicker-free light output to guarantee electrical safety and visual comfort.

7. The light bar adopts double-layer thickened anti-oxidation aluminum profile, offering excellent heat dissipation and sturdy durability.

8. Full potting process treatment, reaching IP65 waterproof rating.

Applications

Advertising light boxes, advertising signs, etc.

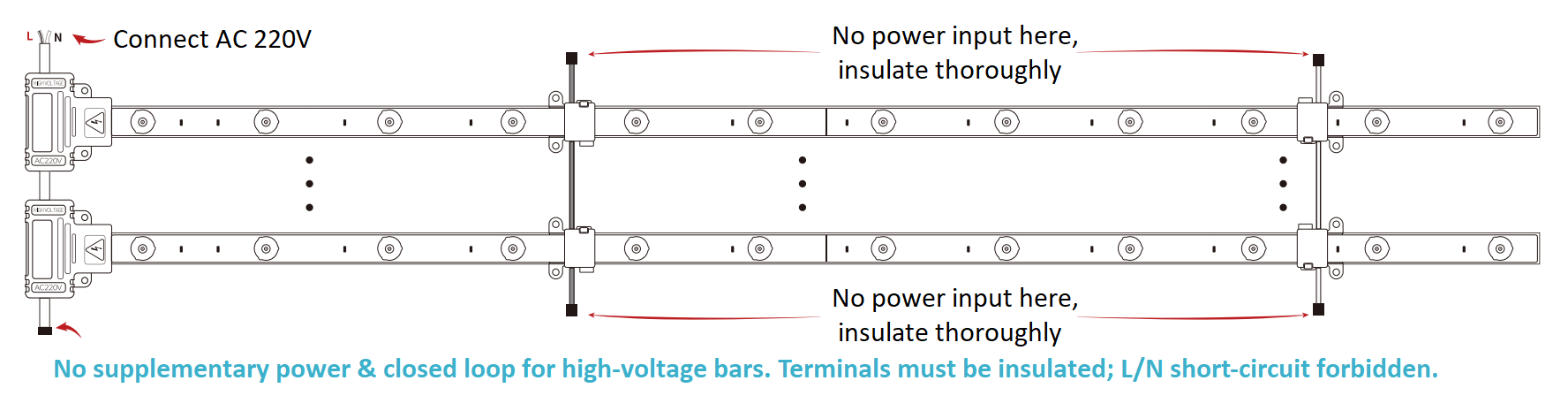

Mounting Method
