MAD9601212B120

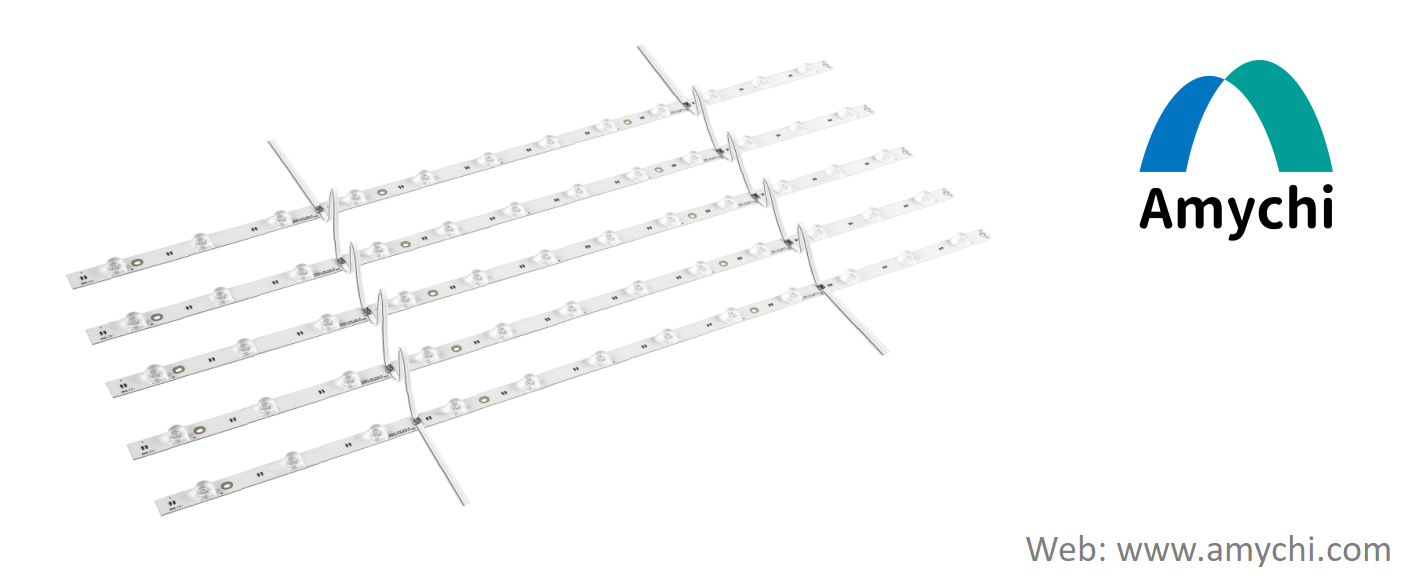

Product Image

Model No.

MAD9601212B120

Dimension

960*18*1mm

Input Voltage

DC 12V

LED Qty

12

Power

14.4W

CCT

12000K

Luminous Flux

1440LM

Wire Spacing

120mm

Features

1. Compliant with CE, CMA and CNAS standards, ensuring reliable and safe performance.

2. The PCB adopts advanced exposure process with customized high-reflection solder mask ink, which effectively boosts the reflectivity of light bars and delivers excellent luminous performance.

3. Premium high-quality LED chips sourced from listed manufacturers with low light decay. Authoritative LM-80 test reports are available to verify stable performance.

4. Adopts innovative reflective lens derived from TV backlight solutions, offering a 180° beam angle. Perfectly compatible with ultra-thin light boxes of 2.5 cm thickness for a wider range of application scenarios.

Applications

Advertising light boxes, advertising signs, etc.

Mounting Method
