MAD9601212B250

Product Image

Model No.

MAD9601212B250

Dimension

960*15.7*1mm

Input Voltage

DC 12V

LED Qty

12

Power

14.4W

CCT

12000K

Luminous Flux

1440LM

Wire Spacing

250mm

Features

1. Compliant with CE, CMA and CNAS standards to guarantee safe and reliable performance.

2. Matched with ultra-wide 175° lenses, With 200 mm wire spacing, only 5 light bars are required per square meter, suitable for 6 cm thick pure white film light boxes; With 250 mm wire spacing, only 4 light bars are required per square meter, applicable to 6 cm thick color film light boxes. It saves power consumption and improves installation efficiency.

Applications

Advertising light boxes, advertising signs, etc.

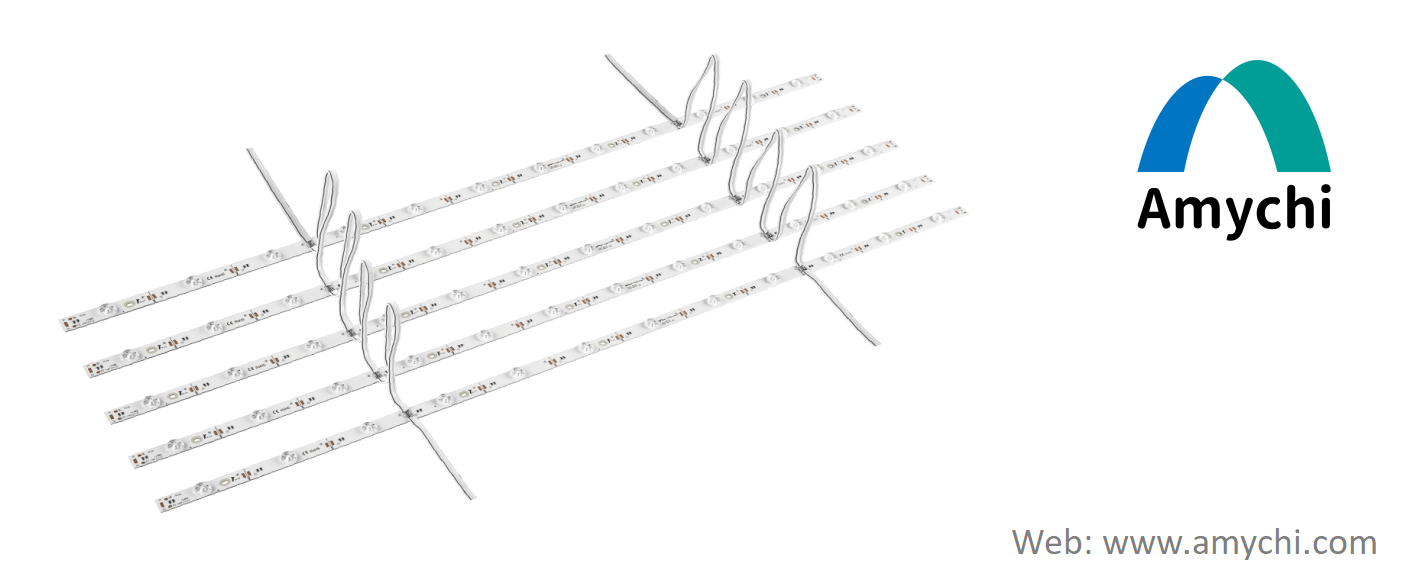

Mounting Method
