MBC684L

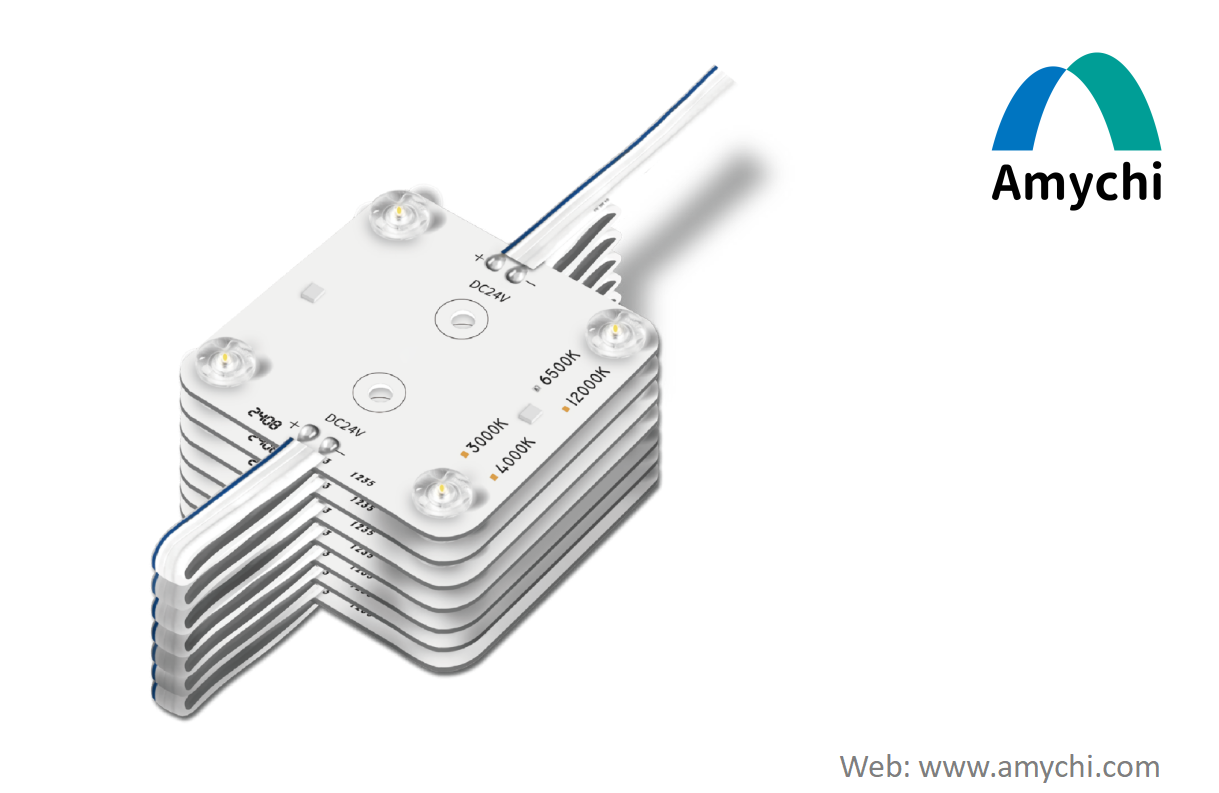

Product Image

Model No.

MBC684L

Dimension

68*68*1mm

Input Voltage

DC 24V

LED Qty

4

Power

4W

CCT

3000K/4000K

6500K/12000K

Luminous Flux

520LM

Wire Spacing

200mm

Features

1. Both-end power feeding supports up to 60 light bars for uniform brightness from head to tail.

2. High-quality LED chips from listed manufacturers with low light decay; authoritative LM-80 test reports are available to guarantee stable performance.

3. Each strip can be cut for flexible quantity adjustment, easily adapting to diverse scenarios and expanding application scope.

4. Adopting cutting-edge patented technology, brightness rises by 20% under the same power consumption.

5. Simple and fast wiring installation saves time and labor.

Applications

Advertising light boxes, advertising signs, soft film ceilings, irregular light boxes, etc.

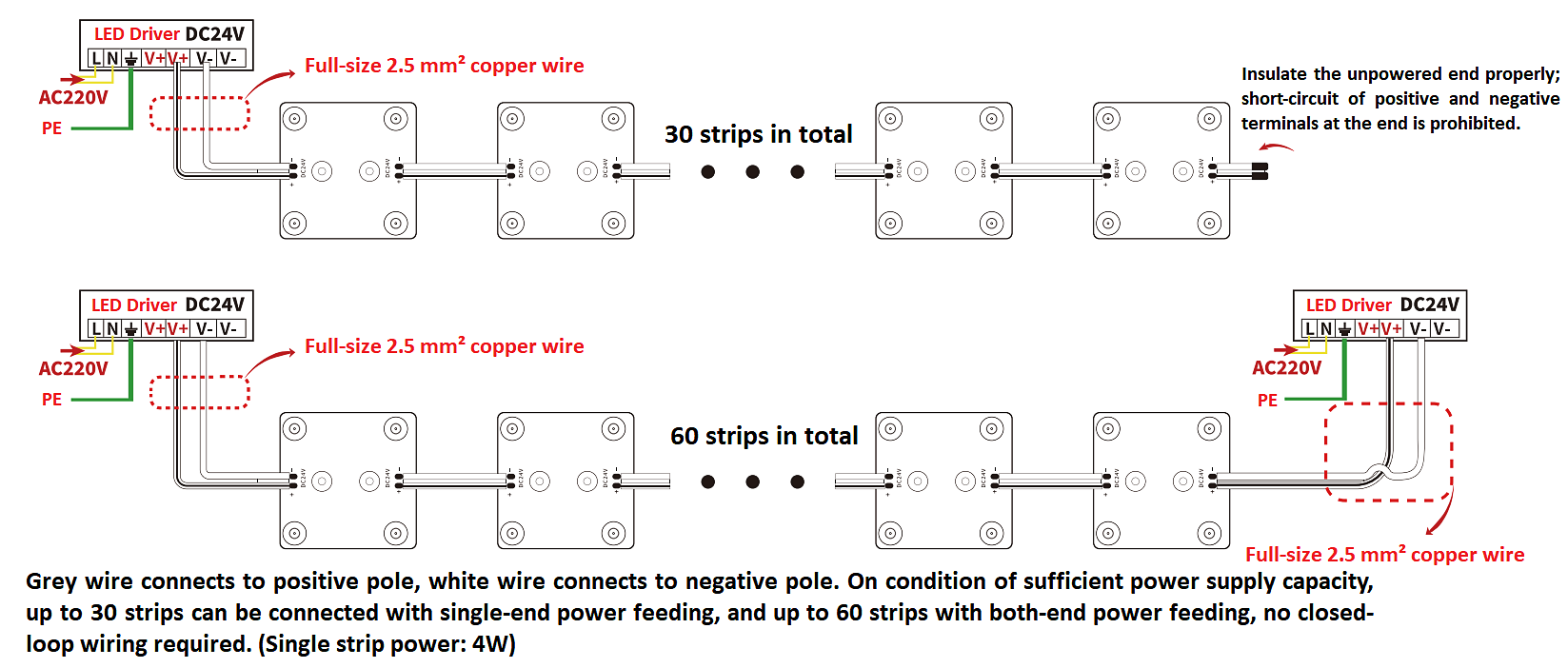

Mounting Method
