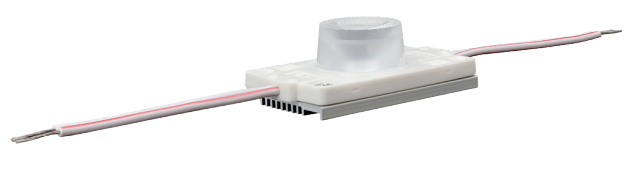

MD541S Series

MD541S

Dimension: 54x 30x 18mm
Power: 3W
Working voltage: 12V
Driving mode: Constant current
Center distance: 190mm
Cascading: 20pcs
Working temp: -30~+60℃
Storage temp: -30~+70℃
Beam angle: 10°x45°

Quantity:

Contact Now

Specification

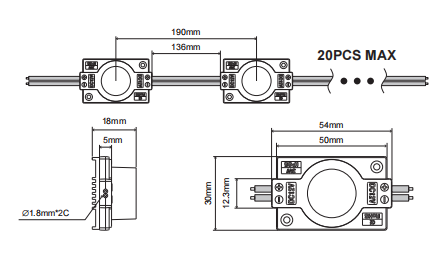

Dimensions(mm)

Dimension	54x 30x 18mm
Power	3W
Working voltage	12V
Driving mode	Constant current
Center distance	190mm
Cascading	20pcs
Working temp	-30~+60°C
Storage temp	-30~+70°C
Beam angle	10°x45°

Optical Parameter
Item NO	Color	CCT	Lumen/ pc	Power/ module	Light Efficiency
MD541S	CW	6500K	300 lm	3W	100 lm/w
	NW	4000K	295 lm		98 lm/w
	WW	3000K	290 lm		96 lm/w

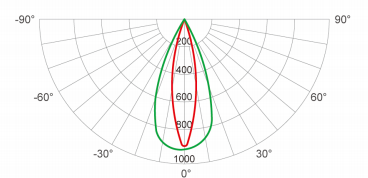

Features	Light distribution

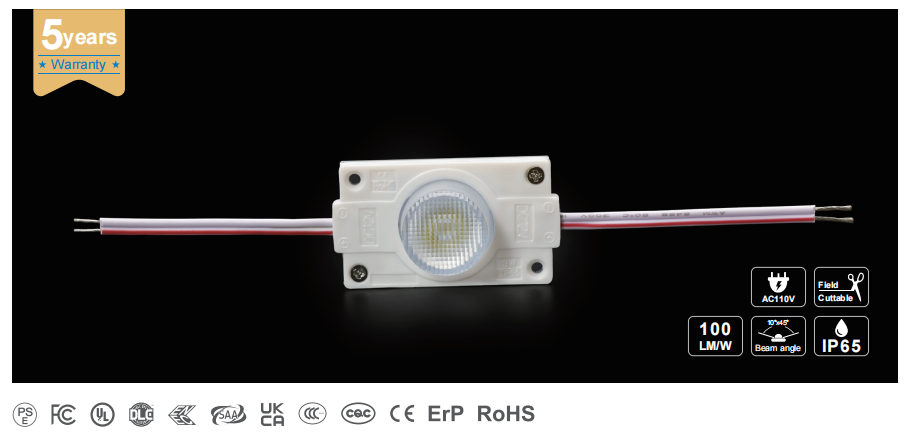

DC12V, waterproof with IP65, Beam Angle 10*45° Suitable for 5-8inch side lighting box High efficiency LED chips to ensure the max brightness Premium components to ensure the stability Great heat dissipation design to ensure long life expectancy 5 years warranty

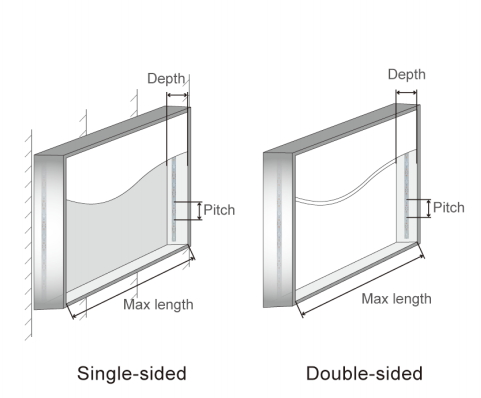

Installation

	Depth	Max Pitch (Module to Module)	Max Length	Surface Illumination
Single- sided	60mm	60mm	1500mm	2500lux
	80mm	80mm	1500mm	2250lux
	100mm	110mm	1500mm	2000lux
	160mm	190mm	1500mm	1650lux
Double- sided	120mm	60mm	1500mm	2350lux
	160mm	80mm	1500mm	2050lux
	200mm	110mm	1500mm	1750lux
	320mm	190mm	1500mm	1250lux

* Note: For multiple rows installation, DZ(margin space) =1/2 DY

Recommend Products

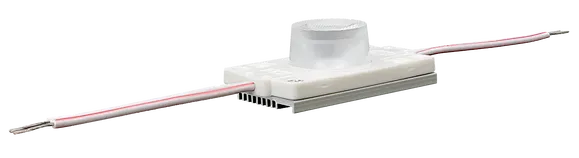

MD541S Series
