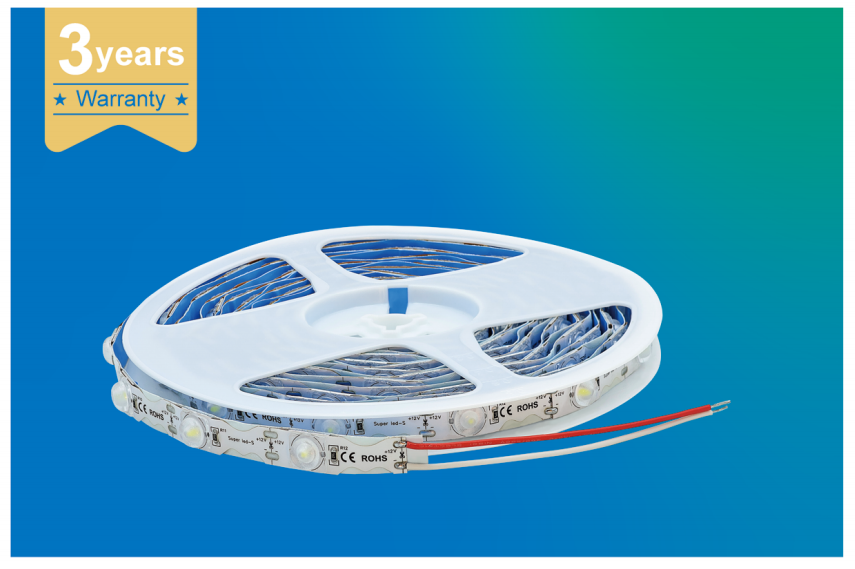

Non-waterproof light strip
AL-121218
LED Type: 3030
Length per roll: 5 Meters / Customized
Input Voltage: 12V
Default Power: 18W/M
CRI: >90(80 Optional)
Beam Angle: 160°
IP Rating: IP20
Length per roll: 5 Meters / Customized
Input Voltage: 12V
Default Power: 18W/M
CRI: >90(80 Optional)
Beam Angle: 160°
IP Rating: IP20
Quantity:
25LEDs/M,12mm
TYPE
LED lighting products
LED soft light band
APPLICATION SCENARIO
Cabinet lighting,household lighting,
commercial space lighting
Display space lighting,atmosphere building
PACKING
Reel+electrostatic bag+moisture-proof agent+carton
PRODUCT FEATURES PCB width 12mm LED technology with strong 3M self-adhesive for secure and easy application Ambient Temperature:-4°F(-20°C) to+104°F(+40℃) Rated for long life over 50,000 hours Safety, low voltage pressure, excellent stability, good flexibility and free bending High brightness, uniform light emission without spot | BASIC PARAMETERS LED Type: 3030 Length per roll:5 Meters/Customized Input Voltage:12V Default Power: 18W/M CRI：>90(80 Optional) Beam Angle: 160° IP Rating： IP20 |
PHOTOELECTRIC PARAMETERS
| CCT | Lumen/M | LED Qty/M | Cuttable Size |
 | 720 | 25 | 1LED,40mm |
 | 760 | 25 | 1LED,40mm |
 | 800 | 25 | 1LED,40mm |
 | / | 25 | 1LED,40mm |
 | / | 25 | 1LED,40mm |
 | / | 25 | 1LED,40mm |

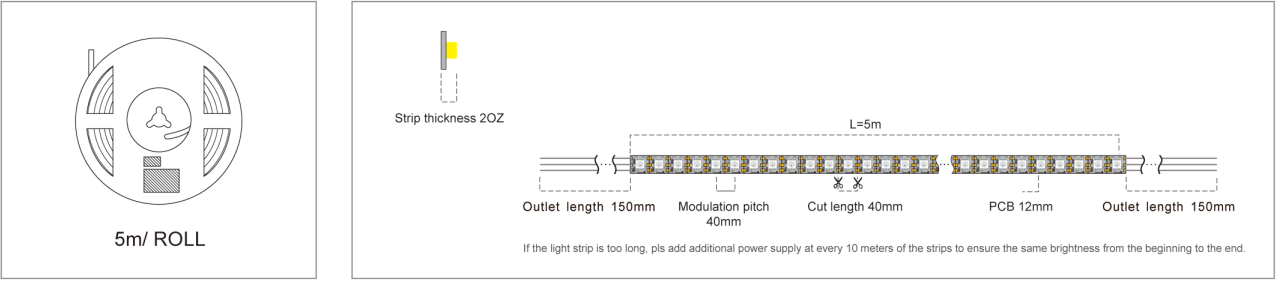

SIZE
Installation instructions

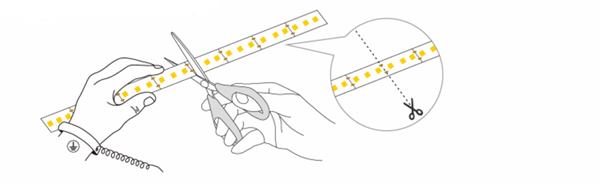

(1) Tailoring
Cut off any excess to the desired length.

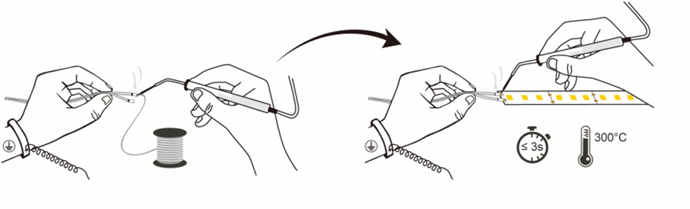

(2) Welding wire
If you need to weld the wire, use a soldering iron to weld the wire to one end of the light strip.

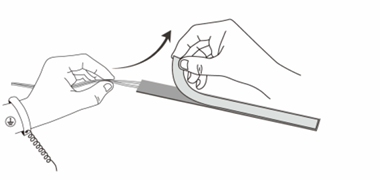

(3) Stripping back
When stripping the back adhesive, it should be stripped while installing. It cannot be stripped all at once to prevent the light strip from
sticking together or elsewhere.
sticking together or elsewhere.

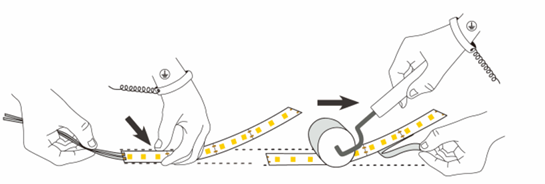

(4) Light strip paste
Slowly paste the strip in one direction to the surface to be pasted, and gently press the pasted part to make it firm.

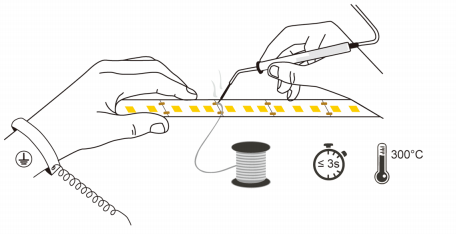

(5) Light strip welding
If the light strip length is not enough, it can be connected.

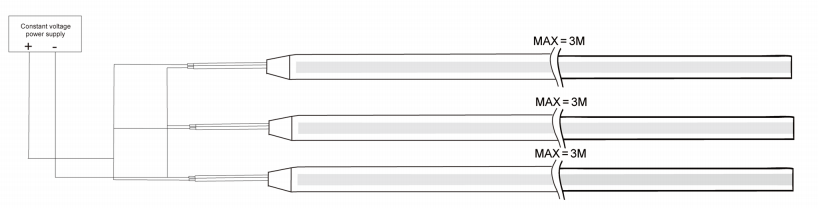

(6) Connect the power supply
Note: Please ensure that the power supply voltage is consistent with the light voltage, and the positive and negative poles need to be correctly matched.
Warning

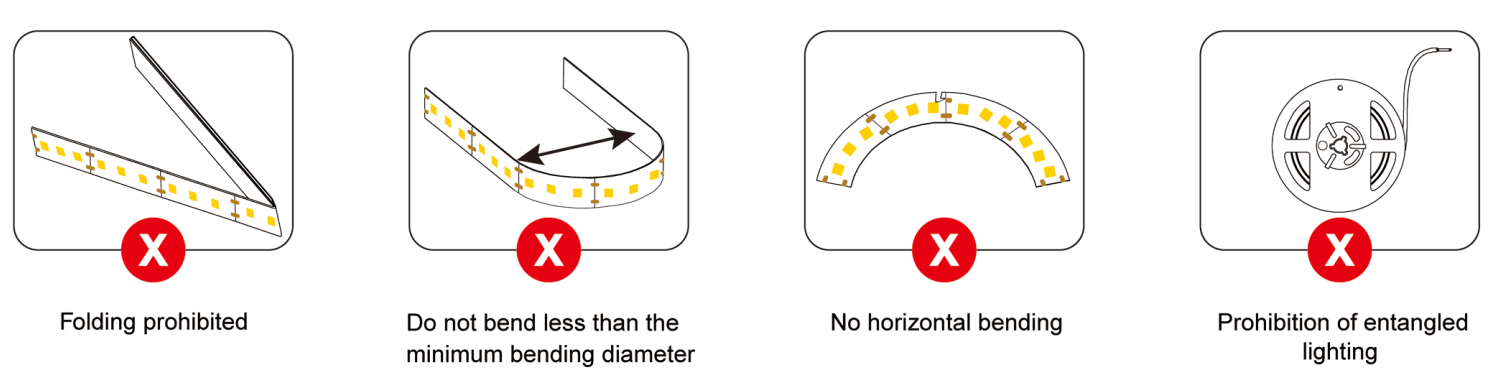

Installation precautions and others
A. Please install according to national standards and local electrical specifications.
B. This product must be installed and maintained by a qualified electrician or other professional.
C. Before installation, please check whether the product parameters are consistent with the requirements (product parameters see the product specification or label).
D. The power supply voltage must be consistent with the required voltage of this product.
E. Ensure that the power of a single power supply is greater than 20% of the load power of the power supply.
F. Live operation is strictly prohibited throughout the installation process.
G. During the wiring process, all positive and negative poles need to be correctly corresponded one by one.
H. If the terminal is used, it is appropriate not to pull out the terminal with bare hands after connection.
I. All connection points must be effectively insulated, waterproof and anticorrosive.
D. The power supply voltage must be consistent with the required voltage of this product.
E. Ensure that the power of a single power supply is greater than 20% of the load power of the power supply.
F. Live operation is strictly prohibited throughout the installation process.
G. During the wiring process, all positive and negative poles need to be correctly corresponded one by one.
H. If the terminal is used, it is appropriate not to pull out the terminal with bare hands after connection.
I. All connection points must be effectively insulated, waterproof and anticorrosive.
