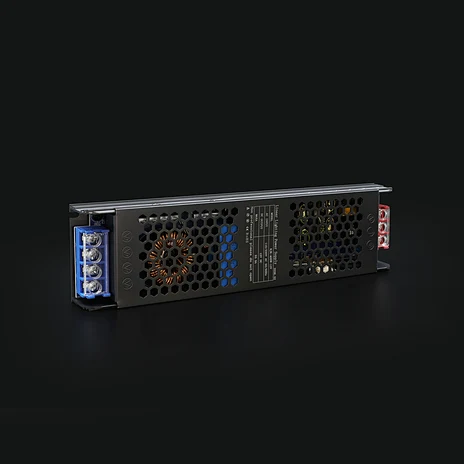

AMCVH-400-24
AMCVH-400-24
Model: AMCVH-400-24
Power: 400W, (60W/ 100W/ 200W/ 300W/ 500W Optional)
Output Voltage: 24V, (36V/ 48V Optional)
Input Voltage: 100V-240V
Efficiency: ≥93.5%
Lifespan: 100000 Hours
IP Rating: IP20
Rated Current: 16.66A
Operating Temperature: -40~+70°C
Dimensions: 231x 70x 32mm
Warranty: 3 years
Power: 400W, (60W/ 100W/ 200W/ 300W/ 500W Optional)
Output Voltage: 24V, (36V/ 48V Optional)
Input Voltage: 100V-240V
Efficiency: ≥93.5%
Lifespan: 100000 Hours
IP Rating: IP20
Rated Current: 16.66A
Operating Temperature: -40~+70°C
Dimensions: 231x 70x 32mm
Warranty: 3 years
Quantity:
| Specification | Dimensions(mm) | ||||||||||||||||||||
|  |
Product Features
- This series offers a comprehensive range of power options and features a semi-potting packaging process, resulting in an elegant and stylish design.
- This series is specifically designed for indoor smart home lighting, as well as advertising light boxes and LED strip lighting projects.
- Compact in size, aesthetically pleasing when installed, and saving on shipping costs and storage space.
- High efficiency and excellent heat dissipation greatly improve product reliability and extend product lifespan.
- Multi-protection (OVP/ OCP/ OLP/ SCP/ OTP). Auto shut-off on short circuit for enhanced safety.
Product Structure
 | Key Features: Utilizes a semi-encapsulated sealing process and features an elegant, stylish design. Suitable for smart home lighting control, as well as advertising light boxes in shopping malls and other projects involving LED strip drivers. Simply connect the input and output wires, plug it into a power source, and it’s ready to use. Caution:Do not disassemble this unit. Installation and use must be performed by a licensed electrician, and the power must be turned off before any work is performed. |
Applications
1. Outdoor signage, illuminated lettering for light boxes, and lighting projects for parks, public spaces, and buildings.
2. Lighting for indoor retail storefront displays, ambient lighting for entertainment venues, home décor, and linear lighting fixtures.
Hotel Lighting Projects Mood Lighting for Leisure Clubs Home Lighting Smart Home Cabinet Lighting Wine Cabinet Display Lighting
Luxury Decorative Lighting Decorative Lighting for Brand Stores Showroom Lighting LED Neon Strip Retail Store Advertising Lighting
Product installation instructions and precautions:
1. Before powering on and testing after installation, please check and verify that the inputs and outputs, AC and DC, positive and negative terminals,
voltage and current values are correct. Prevent reverse connection or incorrect connection to avoid damaging the power supply and user equipment.
2. Before powering on, please use a multimeter to check whether the live wire, neutral wire, and ground wire are short-circuited, and whether the output
terminal is short-circuited; it is best to start under no-load when powering on.
3. Do not exceed the power supply's rated values during use, as this may affect product reliability. If you need to change the power supply's output
parameters, please consult our technical department before using the power supply to ensure optimal performance and reliability.
4. To ensure safety and reduce interference, please ensure that the grounding terminal is reliably grounded.
