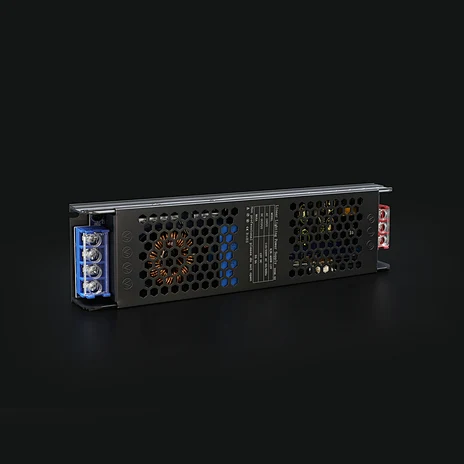

AMIHL-400-12
AMIHL-400-12
Model: AMIHL-400-12
Power: 400W, (60W/ 100W/ 200W/ 300W Optional)
Output Voltage: 12V, (24V Optional)
Input Voltage: 110V/ 220V
Efficiency: ≥85%
Lifespan: 100000 Hours
IP Rating: IP20
Rated Current: 33.3A
Operating Temperature: -35~+70°C
Dimensions: 232x 59x 29mm
Warranty: 3 years
Power: 400W, (60W/ 100W/ 200W/ 300W Optional)
Output Voltage: 12V, (24V Optional)
Input Voltage: 110V/ 220V
Efficiency: ≥85%
Lifespan: 100000 Hours
IP Rating: IP20
Rated Current: 33.3A
Operating Temperature: -35~+70°C
Dimensions: 232x 59x 29mm
Warranty: 3 years
Quantity:
Specification | Dimensions(mm) | ||||||||||||||||||||
|  |
Product Features
- A switching power supply compatible with voltages in multiple countries, offering a full range of power ratings and capable of switching between 110V and 220V.
- This series is widely applicable to LED linear neon strips, showroom cabinet lights, automated machinery, and other advertising light boxes.
- Compact in size, aesthetically pleasing when installed, and saving on shipping costs and storage space.
- High efficiency and excellent heat dissipation greatly improve product reliability and extend product lifespan.
- Multi-protection (OVP/ OCP/ OLP/ SCP/ OTP). Auto shut-off on short circuit for enhanced safety.
Product Structure
Caution:Do not disassemble this unit. Installation and use must be performed by a licensed electrician, and the power must be turned off before any work is performed.
 |  Key Features: It automatically switches between 110V and 220V voltages to accommodate power grids in different countries, reducing inventory and operational costs. Please note that before switching voltages, you must first turn off the power and then flip the corresponding switch; switching while the power is on can easily damage the power supply. |
Applications
1. Outdoor signage, illuminated lettering for light boxes, and lighting projects for parks, public spaces, and buildings.
2. Lighting for indoor retail storefront displays, ambient lighting for entertainment venues, home décor, and linear lighting fixtures.
 |  |  |  |  |
LED Linear Lighting for Hotels | Indoor Strip Lighting | Showroom Cabinet Lighting | Mood Lighting for Leisure Clubs | Wine Cabinet Display Lighting |
 |  |  |  | |
Small-Scale Automation Equipment | Indoor Advertising Light Boxes | Subway Lightbox Advertisements | Indoor Supermarket Advertising | |
Product installation instructions and precautions:
1. Before powering on and testing after installation, please check and verify that the inputs and outputs, AC and DC, positive and negative terminals,
voltage and current values are correct. Prevent reverse connection or incorrect connection to avoid damaging the power supply and user equipment.
2. Before powering on, please use a multimeter to check whether the live wire, neutral wire, and ground wire are short-circuited, and whether the output
terminal is short-circuited; it is best to start under no-load when powering on.
3. Do not exceed the power supply's rated values during use, as this may affect product reliability. If you need to change the power supply's output
parameters, please consult our technical department before using the power supply to ensure optimal performance and reliability.
4. To ensure safety and reduce interference, please ensure that the grounding terminal is reliably grounded.
